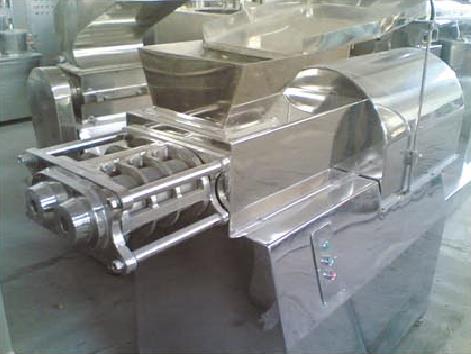

LG Series Screw Granulator
LG Series Screw Granulator
Detail
WORKING PRICIPLE
The machine adopts screw propulsion method for material feeding. The effective granule size of from the feeding template is 0.8-6mm. The granule tightness, length of desired particle shall be specified before ordering. The configuring auxiliary pelletizing can made granular product with high uniformity.
APPLICATION
This machine is widely used for making powder into columnar, strip, spherical in pharmaceutical, food, chemical, dyeing plant protection, and other industries. The size of bright solid tight type or loose soluble type can be adjusted.
TECHNICAL PARAMETERS
|
Model |
Diameter(mm) |
Granule Dia.(mm) |
Power(kw) |
Production Capacity(kg/h) |
Weight(kg) |
Overall Dimension(mm) |
|
LG-70 |
70 |
0.8-4 |
2.2 |
5-20 |
150 |
1200x800x1200 |
|
LG-100 |
100 |
0.8-6 |
5.5 |
15-80 |
200 |
1200x900x1300 |
|
LG-120 |
120 |
1.0-6 |
7.5-11 |
30-120 |
380 |
1500x1000x1500 |
|
LG-140 |
140 |
1.5-6 |
11-15 |
50-250 |
550 |
1600x1200x1550 |
|
LG-160 |
160 |
1.8-6 |
15-22 |
100-400 |
880 |
1900x1400x1700 |
|
LG-250 |
250 |
2.0-6 |
18.5-30 |
200-600 |
1800 |
3000x1600x2100 |
