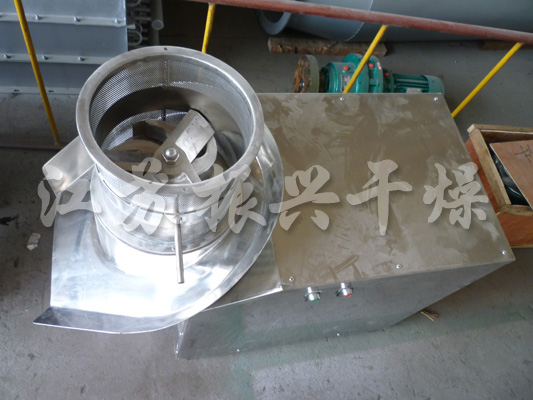

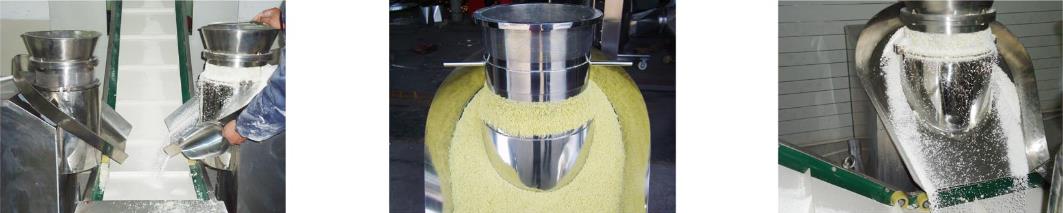

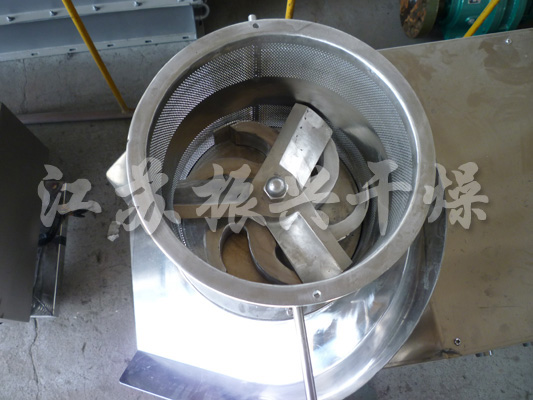

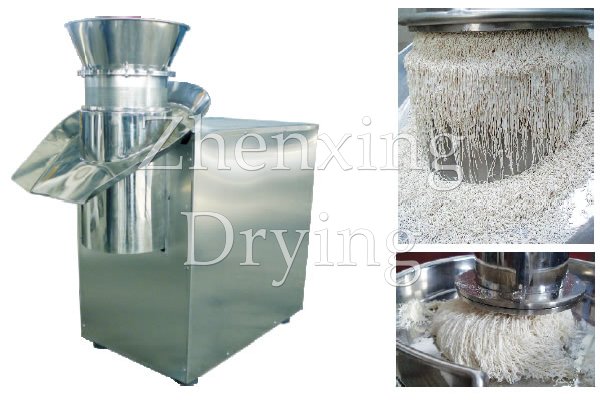

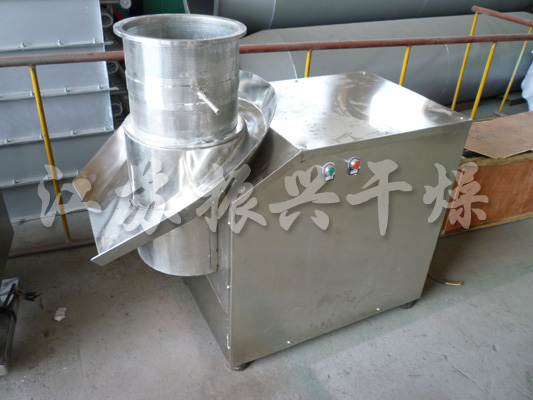

ZLB Series Revolving Granulator
ZLB Series Revolving Granulator
Detail
APPLICATION
The machine is mainly used for pharmaceutical industry, foodstuff industry, chemical industry, solid drink industry, and etc. It can make the stirred raw materials into needed particle, especially for the materials that have higher adhesiveness.
FEATURES
All material contacted parts are made of stainless steel and its appearance is beautiful. It is a high efficiency granulator and it can discharge materials automatically so it can avoid the damages caused by manual operations and suitable for continuous production line.
TECHNICAL PARAMETERS
|
Blade Size(mm) |
250 |
300B |
300D |
|
Particle Diameter (mm) |
2-2.2 |
1.2-3 |
0.5-6 |
|
Motor Power (kw) |
1.5/0.75 |
1.5/0.75 |
4/2.2 |
|
Overall Dimensions (mm) |
700×540×1300 |
880×640×1300 |
1300×800×1200 |
|
Total Weight (kg) |
350 |
400 |
780 |
|
Production Capacity (kg/h) |
100-200 |
140-400 |
300-600 |
