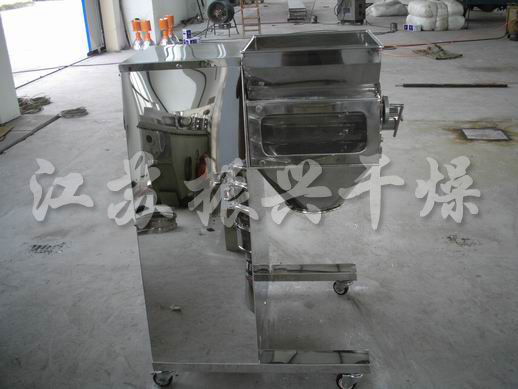

YK Series Swing Granulator
YK Series Swing Granulator
Detail
WORKING PRICIPLE
YK Swing Granulator is the special granulator that can make damp powder pass through screen and granulate particles under the reaction of clockwise and counterclockwise rotating of cylinder. In addition, it can make the agglomeration powder into the needed size particles. The material contact area is made of stainless. It’s easy to clean, simple operation and low energy consumption.
APPLICATION
YK Swing Granulator is widely used for pharmaceutical, foodstuff, chemical, solid drink and related industries.
TECHNICAL PARAMETERS
|
Model |
YK-100 |
YK-160 |
|
Capacity(kg/h) |
30-200 |
100-300 |
|
Power(kw) |
1.1 |
2.2 |
|
Rotating Speed (rpm) |
55 |
55 |
|
Swing Angle(°) |
360 |
360 |
|
Diameter (mm) |
Φ120 |
Φ160 |
|
Overall Dimensions(L×W×H)(mm) |
700×400×1050 |
1000×800×1300 |
|
Weight(kg) |
280 |
380 |
