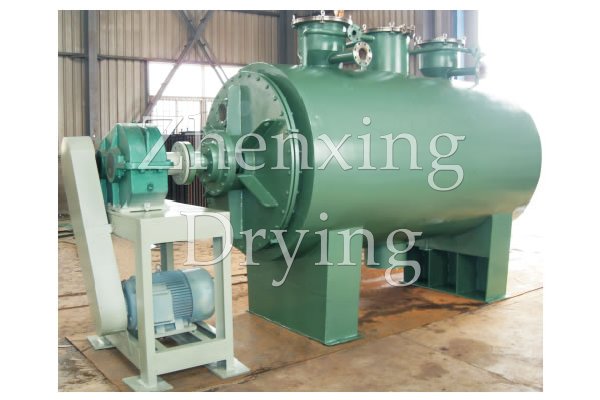

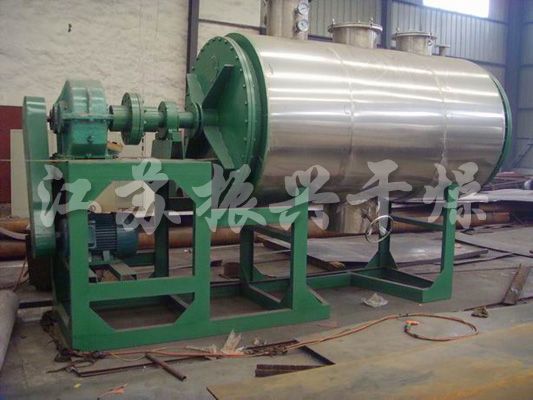

ZPG Vacuum Harrow Dryer

ZPG Vacuum Harrow Dryer

ZPG Vacuum Harrow Dryer is an innovation horizontal batch-type vacuum dryer improved on the basic of introduced technology of harrow dryer. The moister of wet material will be evaporated by heat transmission. The stirrer with blade will remove material on hot surface and move in the container to form cycle flow .The evaporated moisture will be pumped by vacuum pump.

Detail

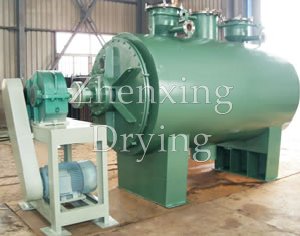

ZPD Vacuum Harrow Dryer

WORKING PRINCIPLE

  ZPG Vacuum Harrow Dryer is an innovation horizontal batch-type vacuum dryer improved on the basic of introduced technology of harrow dryer.

  The moister of wet material will be evaporated by heat transmission. The stirrer with blade will remove material on hot surface and move in the container to form cycle flow .The evaporated moisture will be pumped by vacuum pump.



FEATURES

  1. This dryer adapted the interlayer heating technology. The heat conducting area is large and the heat efficiency is high.

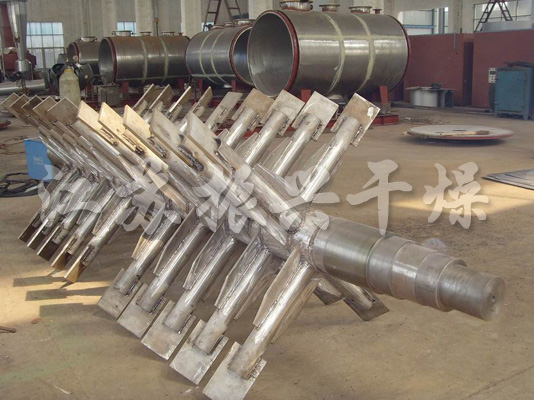

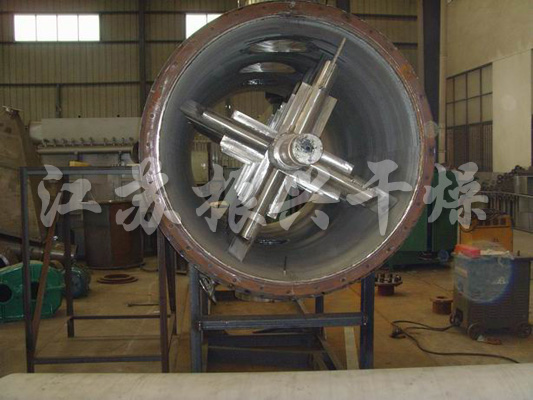

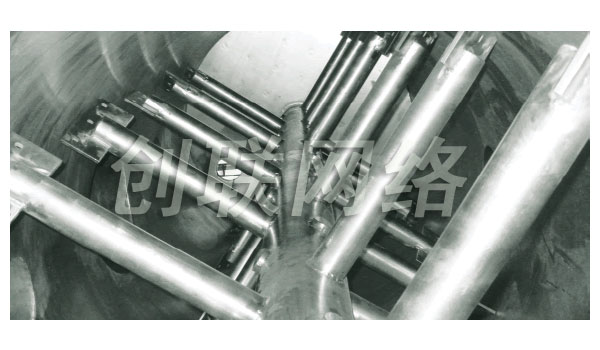

  2. This dryer is equipped with stirring device; it keeps the raw material in a continuous circling status inside of the cylinder so the heating uniformity is improved greatly.

  3. With the stirring functions, the dryer can easily dry the pulpiness, paste-like mixture or powder materials.



APPLICATION

  This dryer is widely used in pharmaceutical industry, foodstuff industry, chemical industry and etc. Especially suitable for the following materials:

  1. Pulpiness, paste-like mixture or powder materials.

  2. Thermal sensitive material which required to be dried at lower temperature.

  3. Materials that are easy to oxidize or explode and the material that have strong irritative or toxic.

  4. Materials that required recovering solvent.



TECHNICAL PARAMETERS

Item

Model

Unit

ZPG-500

ZPG-750

ZPG-1000

ZPG-1500

ZPG-2000

ZPG-3000

Working Volume

L

300

450

600

900

1200

1800

Heating Area

m2

6

7.6

9.3

12.3

14.6

19.3

Stirring Revolution

rpm

6-30stepless variable

Power

kw

4

5.5

5.5

7.5

11

15

Design pressure of Jacket(Hot water))

MPa

≤0.3

Vacuum Degree

(Inside of  the cylinder)

MPa

-0.09~0.096

Notes: The evaporated amount of water is related to the characteristics of raw materials and the temperature of inlet air and outlet air. When the temperature of the outlet air is 90°C, the water evaporated curve is listed in above table (for reference only). If the product have been improved or updated by new technology, the related parameters will be change accordingly!

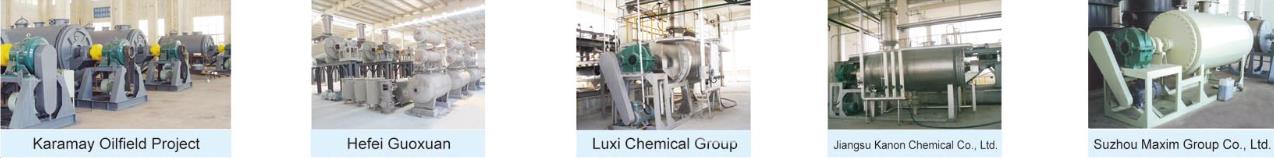

TYPICAL PROJECTS
