LTD Series Coulter Mixer

LTD Series Coulter Mixer

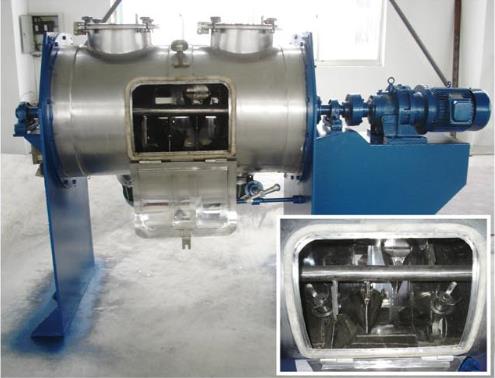

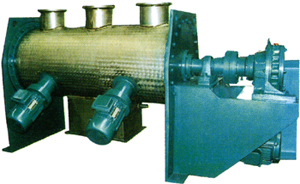

This machine is composed of transmission device, horizontal cylinder, coulter, and fly cutter. The raw material flows circumferentially along the cylinder and it will be tossed and sprinkled under action of the high speed rotating cutler. Therefore, the material can be evenly mixed in a shorter time.

Detail

DESCRIPTION

  This machine is composed of transmission device, horizontal cylinder, coulter, and fly cutter.  The raw material flows circumferentially along the cylinder and it will be tossed and sprinkled under action of the high speed rotating cutler. Therefore, the material can be evenly mixed in a shorter time.


APPLICATION
  This machine is suitable for the mixing of solid-solid (powder and powder), solid-liquid (adding a small amount of liquid into the powder), and some compound technology process such as granulating wet particle and drying. It is especially suitable for mixing viscous material or glue-like additive material.



TECHNICAL PARAMETERS

Item

Model

LTD-0.1

LTD-0.3

LTD-0.5

LTD-1

LTD-2

LTD-4

LTD-6

LTD-8

LTD-10

LTD-12

LTD-15

Mixing Capacity

 (kg)

40-60

120-180

200-300

400-600

800-1200

1600-2400

2400-3600

3200-4800

4000-6000

4800-7200

6000-9000

Power

(kw)

3.7

7.7

8.5

15.5

23

28

33

37

41

48

56

Weight

(kg)

430

950

1100

1800

2520

3220

6750

7200

7500

8500

9200
