EYH Series 2 D Motion Mixer

EYH Series 2 D Motion Mixer

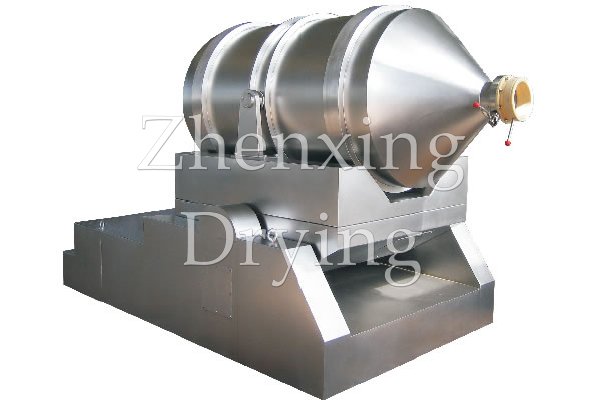

EYH Series 2 D Motion Mixer consists of three main parts, which are rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack and supported by four wheels, and its axial fixation is done by two stop-wheels. Two of four wheels are driven by rotating power system to rotate the cylinder. The swinging rack is driven by a set of crankshaft swinging bar, which is mounted on the frame, and the swinging rack is supported on the frame as well.

Detail

WORKING PRINCIPLE

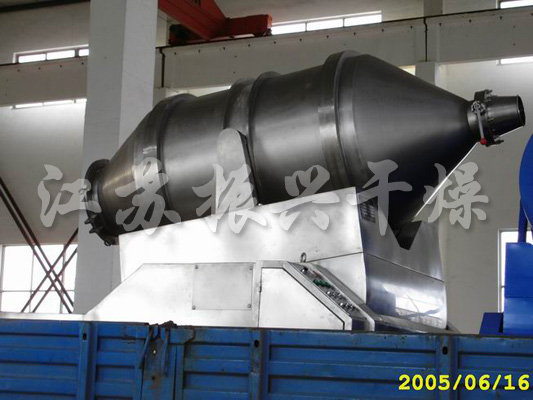

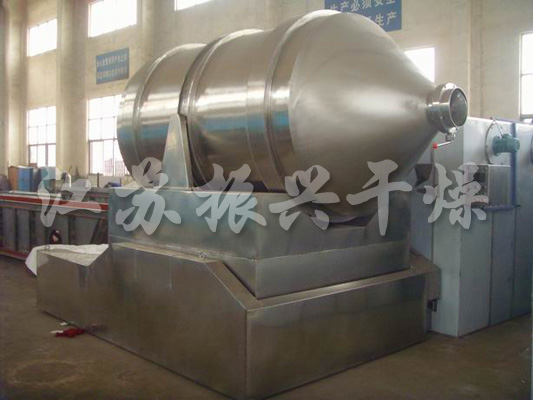

  EYH Series 2 D Motion Mixer consists of three main parts, which are rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack and supported by four wheels, and its axial fixation is done by two stop-wheels. Two of four wheels are driven by rotating power system to rotate the cylinder. The swinging rack is driven by a set of crankshaft swinging bar, which is mounted on the frame, and the swinging rack is supported on the frame as well.


FEATURES

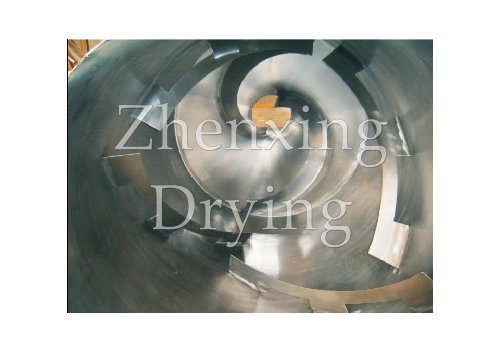

  EYH Series 2 D Motion Mixer (2D mixer & 2D blender) can make two motions at the same time. One motion is the rotation of the cylinder and the other motion is swing of the cylinder along the swinging rack. The materials will be rotated when the cylinder is rotating and mixed when the cylinder is swinging left and right. As a result of two motions, materials can be fully mixed in a short time. This mixer is suitable for mixing of power and granule materials.



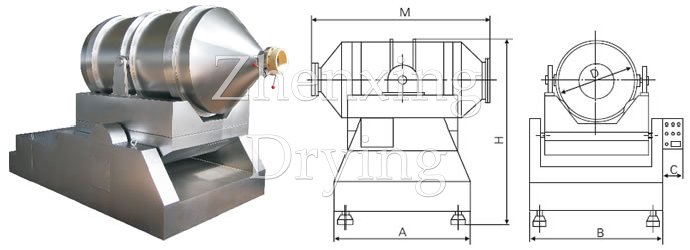

TECHNICAL PARAMETERS

Model

Volume(L)

Load Factor

Loading Weight
  (kg)

Overall Dimension(mm)

Power(kw)

A

B

C

D

M

H

Rotation

Swing

EYH100

100

0.5

40

860

900

200

400

1000

1500

1.1

0.75

EYH300

300

0.5

75

1000

1100

200

580

1400

1650

1.1

0.75

EYH600

600

0.5

150

1300

1250

240

720

1800

1850

1.5

1.1

EYH800

800

0.5

200

1400

1350

240

810

1970

2100

1.5

1.1

EYH1000

1000

0.5

350

1500

1390

240

850

2040

2180

2.2

1.5

EYH1500

1500

0.5

550

1800

1550

240

980

2340

2280

3

1.5

EYH2000

2000

0.5

750

2000

1670

240

1100

2540

2440

3

2.2

EYH2500

2500

0.5

950

2200

1850

240

1160

2760

2600

4

2.2

EYH3000

3000

0.5

1100

2400

1910

280

1220

2960

2640

5

4

EYH5000

5000

0.5

1800

2700

2290

300

1440

3530

3000

7.5

5.5

EYH10000

10000

0.5

3000

3200

2700

360

1800

4240

4000

15

11

EYH12000

12000

0.5

4000

3400

2800

360

1910

4860

4200

15

11

EYH15000

15000

0.5

5000

3500

3000

360

2100

5000

4400

18.5

15

Notes: The material bulk specific gravity is calculated based on 0.6g / cm3; please indicate if the bulk specific gravity excess this figure before placing order.



 EYH Series Two Dimensions Mixer
