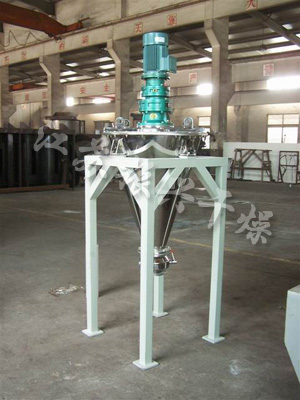

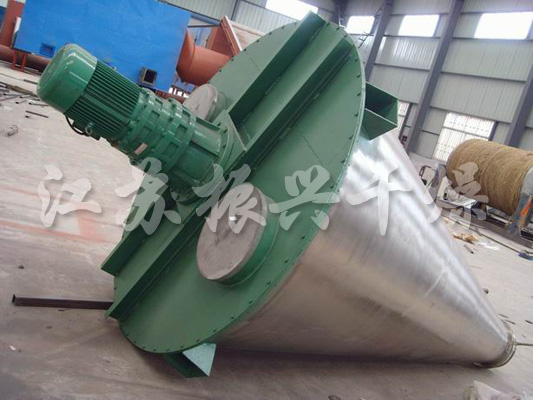

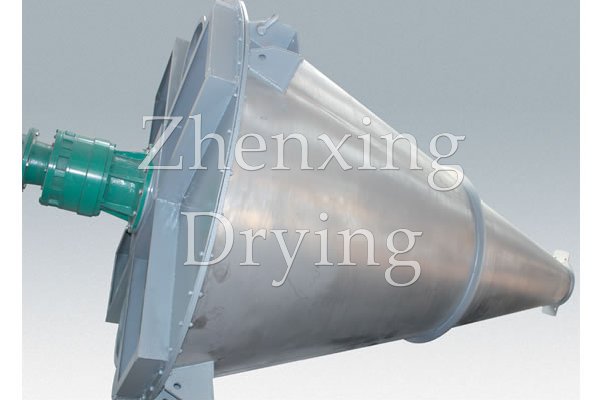

DSH Series Double/Triple Helix Cone Mixer

DSH Series Double/Triple Helix Cone Mixer

This machine is a new , efficient, high-precision mixing equipment, widely used in pharmaceutical, chemical and feed industries mixture of various powdered materials.

Detail

WH Series Double Screw Cone mixerDESCRIPTION

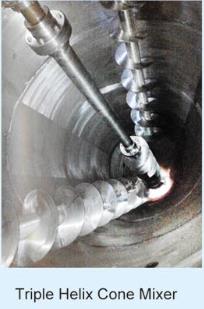

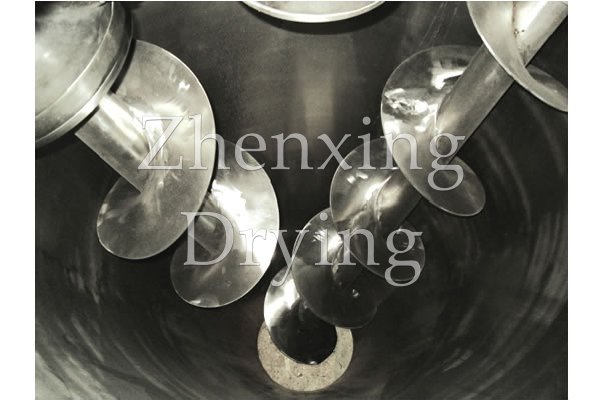

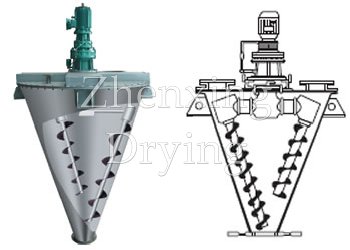

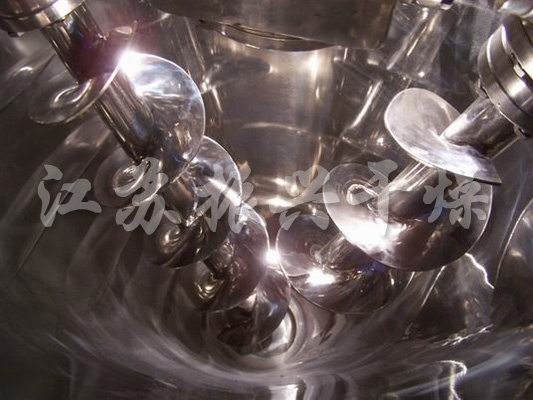

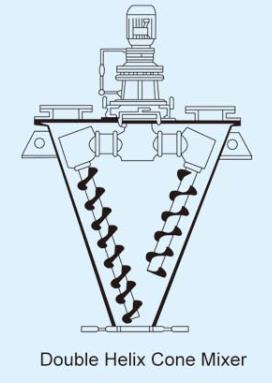

  The helix rotates and pushes the material to create a composite motion inside of the cone. The main motion types are:

  1. Orbit rotation along the wall and push the material in a circular motion;

  2. Spin rotation to push the material rise up from the bottom edge of the cone;

  3. Orbit and spin rotation will absorb part of material to the bottom of the cone and the material will be push up under action of centrifugal force at the same time;

  4. The material fell by its own gravity. Those four movements in the mixer create convection, shearing, diffusion, so as to achieve rapid and uniform mixing purposes.



FEATURES

  1. Reasonable structure and long life style.
  2. Easy to operate and maintain
  3. High efficiency and low labor intensity

  4. Tapered cylinder is suitable for mixing materials the high demand without remain
  5. The gentle agitation speed will not damage to fragile materials.

  6. The mixing function of the mixer has a better effect on the chemical reaction for the materials.


APPLICATION
  This machine is widely used for mixing powder and powder (solid-solid), powder and liquid (solid-liquid), liquid and the liquid (liquid-liquid) in chemical, pharmaceutical, foodstuff, biotechnology, healthy products, fertilizer, dyestuff, pigment, metallurgy, mine, building materials, plastic, and other industries.



TECHNICAL PARAMETERS

Model

Unit

DSH0.3

DSH0.5

DSH1

DSH2

DSH4

DSH6

DSH10

Total Volume

(m3

0.3

0.5

1

2

4

6

10

Load Factor

0.4-0.6

Mixture Granularity

(um)40-3000

Working Condition

Working at room temperature, atmospheric pressure, dust   sealing condition

Production Output(per batch)

(kg)

180

300

600

1200

2400

3600

6000

Power

(kw)

2.2

2.2

5.5

5.5

11

20.7

30.7

Mixing Time

(min)4-10(Special materials are determined by   experiments)

Weight

(kg)

500

1000

1200

1500

2800

3500

4500
